At a home in Whitestown, Blanchardstown, we dealt with three exposed details on the same tiled roof: the ridge tiles, the gable verge and the chimney top. The work was ridge tile repointing, a grey dry verge installation and a chimney cup. The photographs show a gap at the ridge before work, the preparation and the finished roofline.
This is a useful job to look at because those details are easy to group together as “roof repairs”, though each has a different role. Understanding that difference helps when you are looking at a quote for your own roof.
On this Whitestown roof, we prepared and repointed the ridge tiles, fitted a dry verge system along the gable edge and installed a chimney cup. The before and progress photos show where the roof needed attention; the finished photos show new pointing and a continuous line of verge units. A photograph can show the visible finish, but the right scope for another roof still depends on an inspection.
Have a ridge or roof edge that needs attention?
Send us photographs if you have them. We can assess the ridge, verge and nearby details, then explain the work your roof needs.
✅ Free Quote • No Hidden Costs • Same-Day Response
What the Whitestown roof photographs show
The first close-up shows an opening beneath a ridge tile, with older mortar and growth around the joint. Before new pointing went in, we brushed the ridge area to prepare the surface. The later photographs show fresh mortar along the ridge tile edges.

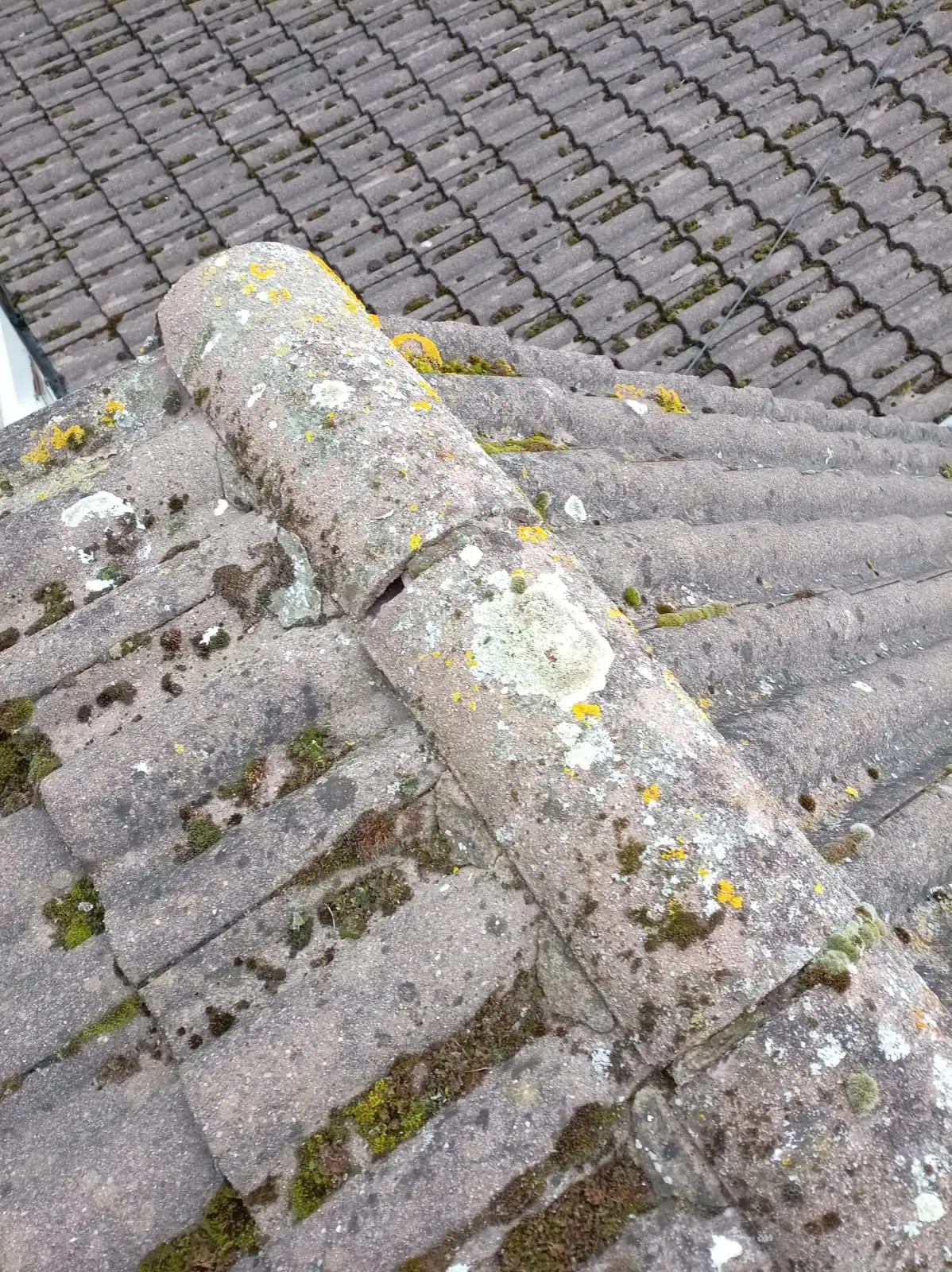

Before: the opening at the ridge tile joint is visible in the close-up.

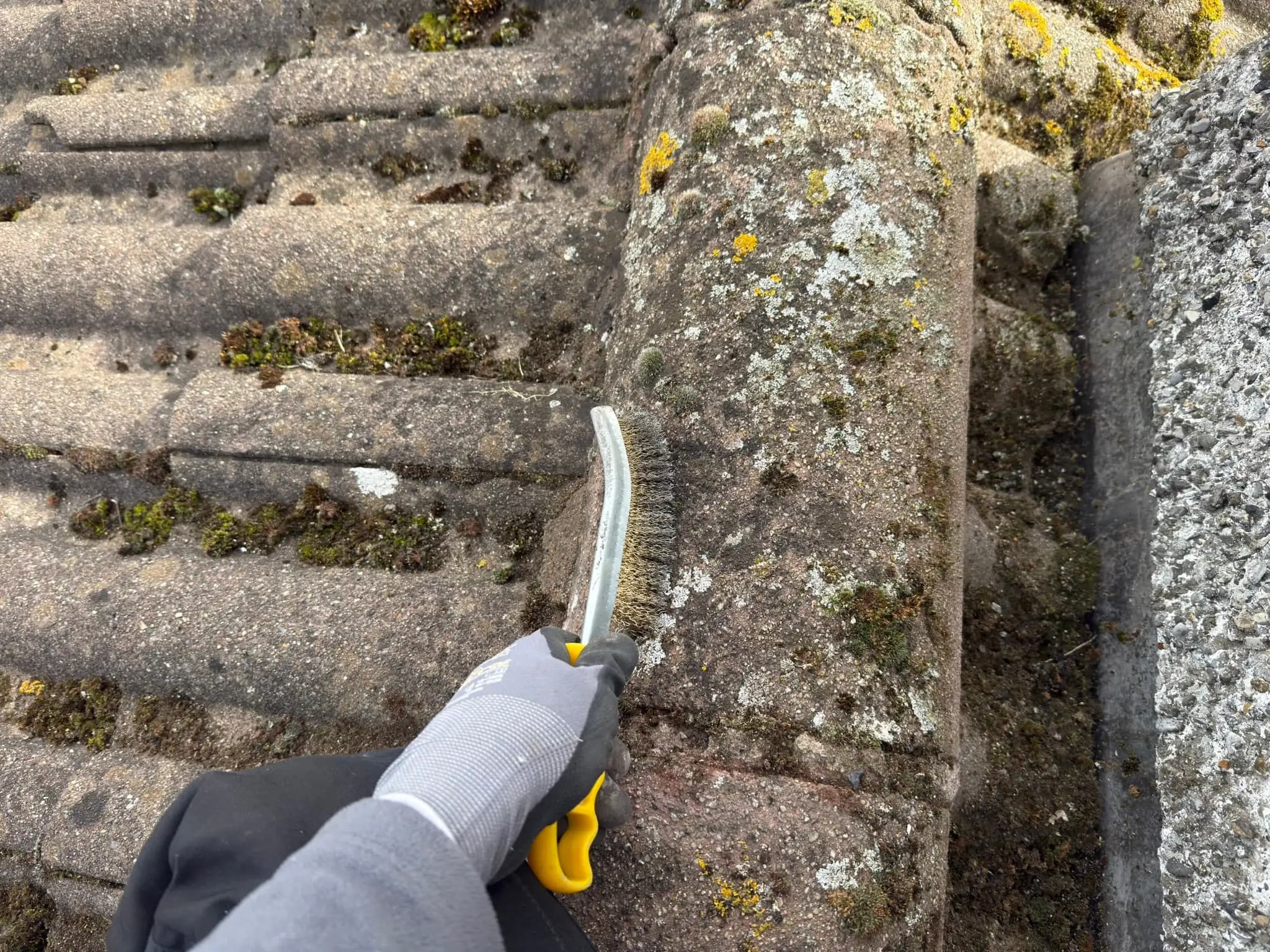

During: the existing ridge tile being cleaned before the pointing work.
The wider progress photograph catches the job between stages. The ridge pointing has been renewed, while the gable edge has yet to receive its full run of grey dry verge units. That makes the sequence easier to follow than a finished photograph alone.

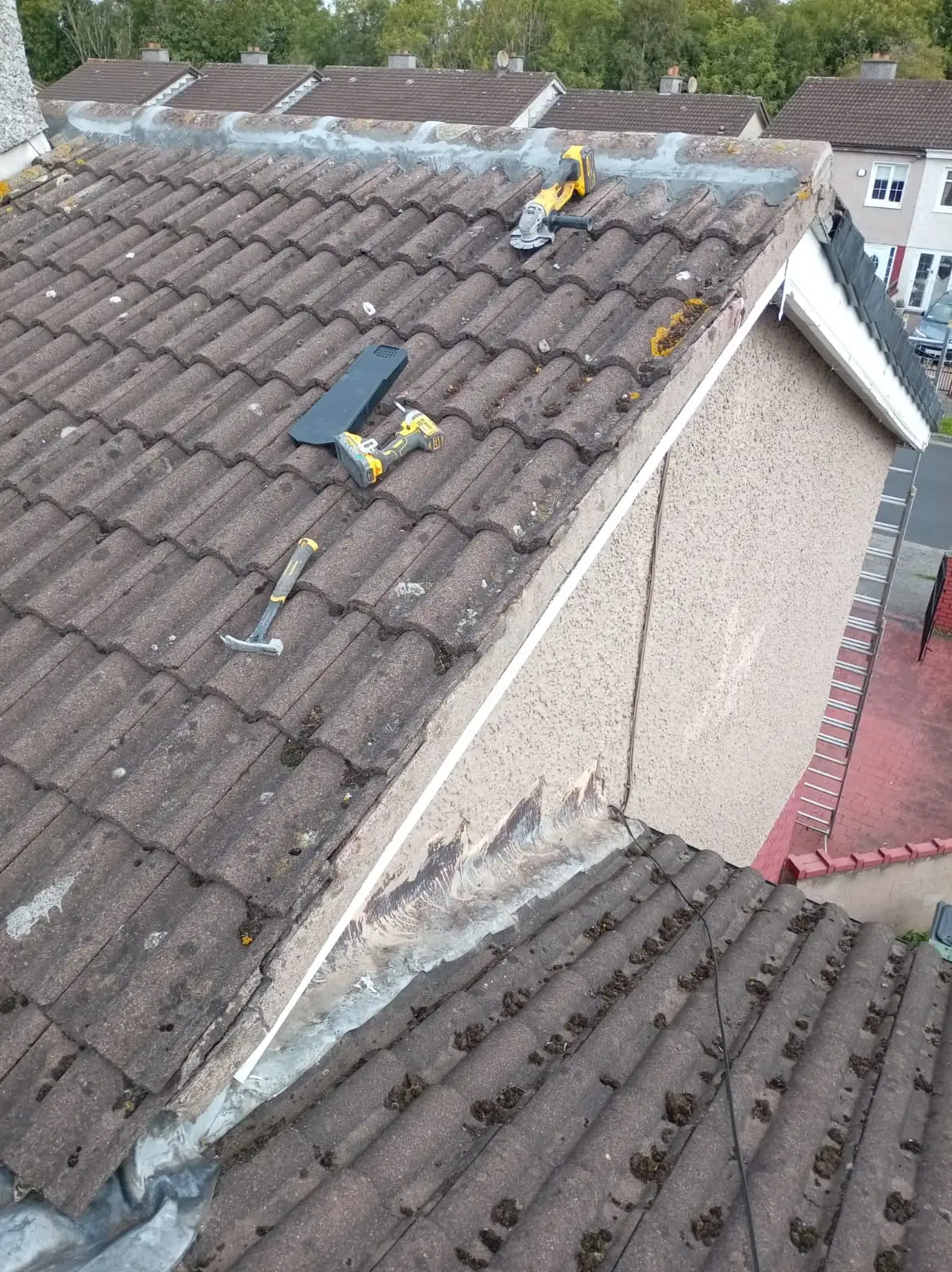

During: drying fresh ridge pointing, with the gable verge still in progress.
The full Whitestown project gallery includes the chimney before view, the dry verge being fitted and the completed work.
Ridge repointing and dry verge solve different problems
The ridge is the line at the top where the roof slopes meet. On a mortared ridge, pointing is the exposed mortar finish around the ridge tiles. If that pointing has failed but the tiles and the bedding beneath them remain secure, renewing the pointing may be appropriate. If a ridge tile is loose or its bedding has failed, surface pointing alone will not put that right. The bedding and tile need to be assessed before choosing a repair.
The verge is the sloping edge of the roof at a gable. Here, we fitted a run of interlocking grey dry verge units over that tiled edge. A dry verge is a roof-edge system; it is not the same thing as a dry ridge system at the roof peak. This Whitestown job combined a dry verge with mortar repointing at the ridge. The terms sound similar, but they describe different work on different parts of the roof.
For a closer look at the options for roof edges and ridges, see our dry verge and ridge installation service. The choice between repointing, re-bedding and a dry ridge should follow the condition found on the roof, not a preference for one term on a quote.
The chimney detail was part of the same job
The supplied photographs also show the chimney top before work and fresh mortar around the chimney area afterward. We fitted a chimney cup as part of the agreed scope. We have not treated the visible chimney photographs as proof of additional chimney repairs or of a leak that was never reported.

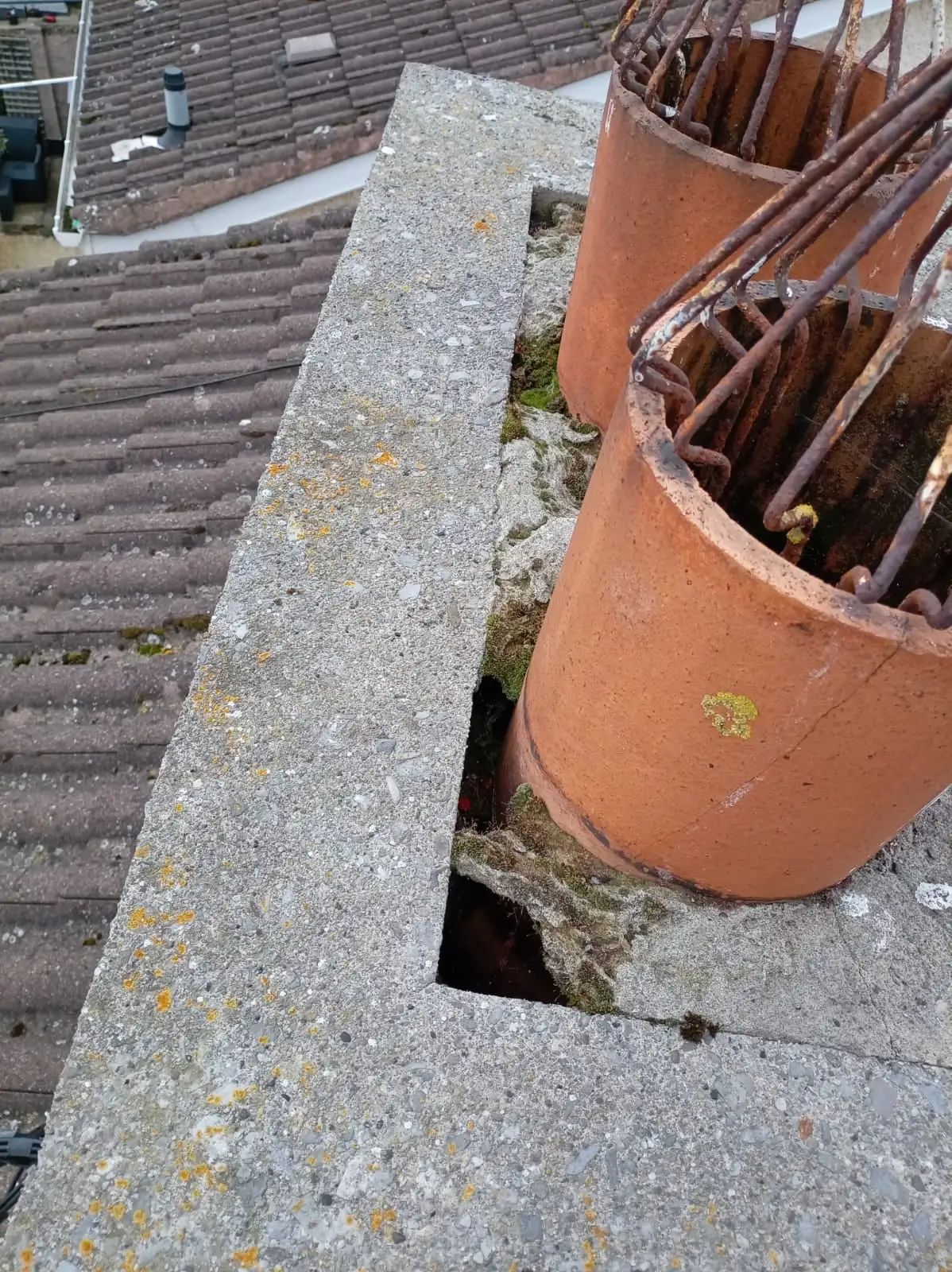

Before: the chimney top and pots, photographed before the roof-detail work.

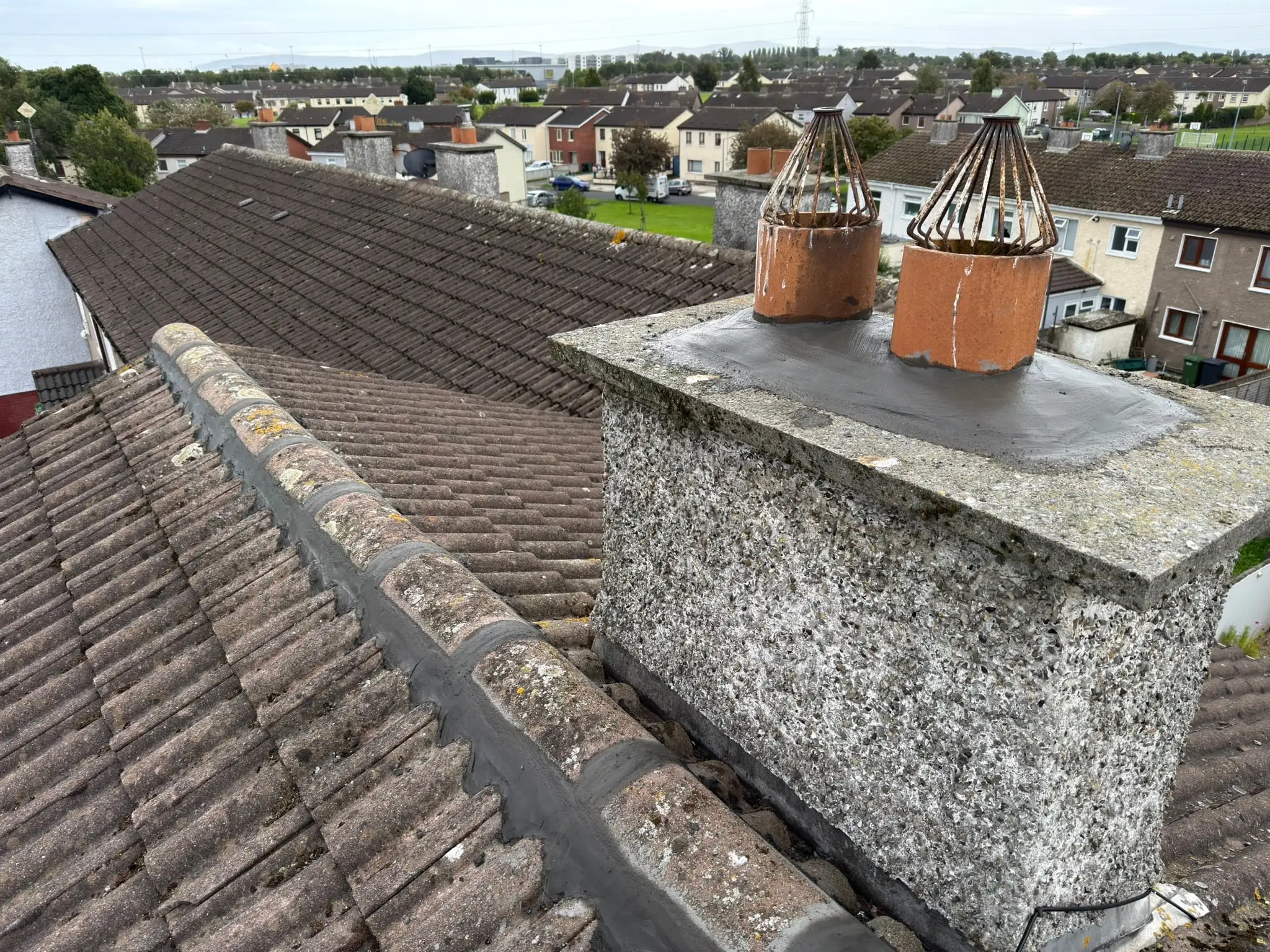

After: the renewed ridge pointing can be seen beside the chimney.
If a chimney is part of your roof enquiry, tell the roofer whether you use the fireplace or appliance it serves. The type and condition of the opening matter when discussing a cup or cowl. Our chimney repair service covers the roofing-related details around chimneys as well as the chimney top.
What to ask before agreeing a similar roof repair
A short conversation about scope is more useful than a promise based on a ground-level photograph. These three questions help separate the jobs:
- Is the ridge pointing the only failed part? Ask whether the ridge tiles and their bedding have been checked. A neat new mortar edge is not a substitute for securing a loose tile.
- Which gable edges will receive dry verge? Ask for the extent of the run and the finishing detail at the ridge and eaves to be clear in the written quote.
- What exactly is included at the chimney? Confirm the cup or cowl work and any separate mortar or flashing work. Do not assume that “chimney work” covers every component.
Access, roof pitch, the length of the ridge and verge, and the condition found once work begins all affect the scope and final quote. We did not publish a price for this Whitestown job, so it would be misleading to use it as a fixed-price example. For broader cost context, see our Dublin roofing guide prices.
Frequently Asked Questions
If you have noticed an open ridge joint, a worn gable edge or an issue around a chimney, take a photograph from a safe position on the ground and request a roof assessment. We can explain which details need repair and show you the proposed scope before work starts.
